120W HLG-120H Dimmable LED Power Supply 48VDC For Led Grow Light

Name: 120W HLG120H Dimmable LED Power Supply 48VDC For Led Grow Light
Brand: MEANWELL
Price: 1 USD

China 120W HLG-120H Dimmable LED Power Supply 48VDC For Led Grow Light wholesale

Brand Name : MEANWELL

Model Number : HLG-120H-48B

Certification : SGS,ROHS,TUV

Place of Origin : Shenzhen,China

MOQ : 1

Payment Terms : T/T,PAYPAL,Western Union,Money Gram

Supply Ability : 5000pcs/months

Delivery Time : 3-4 working days

Packaging Details : Cartons

DC VOLTAGE : 48V

CONSTANT CURRENT REGION : 24 ~ 48V

RATED CURRENT : 2.5A

RATED POWER : 120W

CURRENT ADJ. RANGE : 1.2 ~ 2.5A

VOLTAGE RANGE : 90 ~ 305VAC 127 ~ 431VDC

FREQUENCY RANGE : 47 ~ 63Hz

POWER FACTOR (Typ.) : PF>0.98/115VAC, PF>0.95/230VAC, PF>0.93/277VAC @ full load

Contact Now

120W HLG-120H Constant Current Constant Voltage Dimmable Led Driver For Led Grow Light

Product Description

120W HLG-120H Dimmable LED Power Supply 48VDC For Led Grow Light

Features constant current power supply led:

constant voltage+constant current mode output.
metal housing with class I design.
built-in active PFC function
IP67/ IP65 rating for indoor or outdoor installations.
Function options: output adjustable cia potentiometer; 3 in 1 dimming, timer dimming.
typical lifetime>62000 hours
7 years warranty

Quick Details:

DC VOLTAGE	48V
CONSTANT CURRENT REGION	24 ~ 48V
RATED CURRENT	2.5A
RATED POWER	120W
CURRENT ADJ. RANGE	1.2 ~ 2.5A
VOLTAGE RANGE	90 ~ 305VAC 127 ~ 431VDC
FREQUENCY RANGE	47 ~ 63Hz
POWER FACTOR (Typ.)	PF>0.98/115VAC, PF>0.95/230VAC, PF>0.93/277VAC @ full load
DIMENSION	2206838.8mm (LWH)

120W HLG-120H Dimmable LED Power Supply 48VDC For Led Grow Light

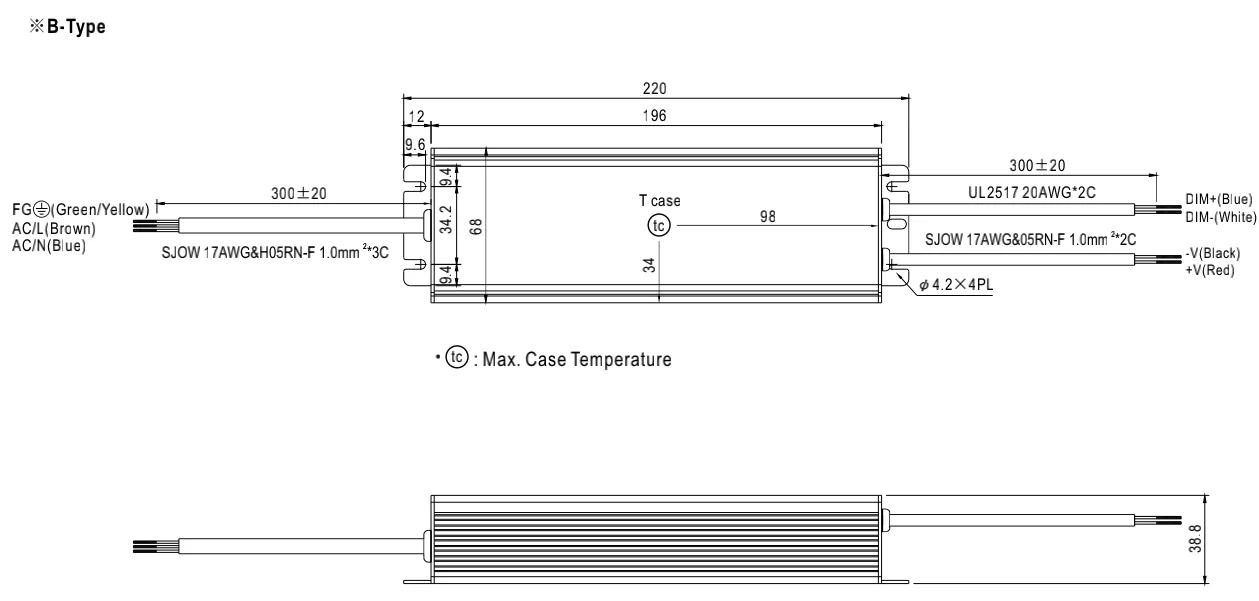

Product Drawing:

120W HLG-120H Dimmable LED Power Supply 48VDC For Led Grow Light

HLG-100,120,150,185(H),HLG-100,150,185-EMC-cer.pdf...

Application

This HLG-120H-48B dimmable Led Driver is use for Led Grow Light

Product Tags:

HLG-120H Dimmable LED Power Supply

120W Dimmable LED Power Supply

431VDC Constant Current Power Supply

120W HLG-120H Dimmable LED Power Supply 48VDC For Led Grow Light Images
